From inc.Made in New Zealand
US$1,395

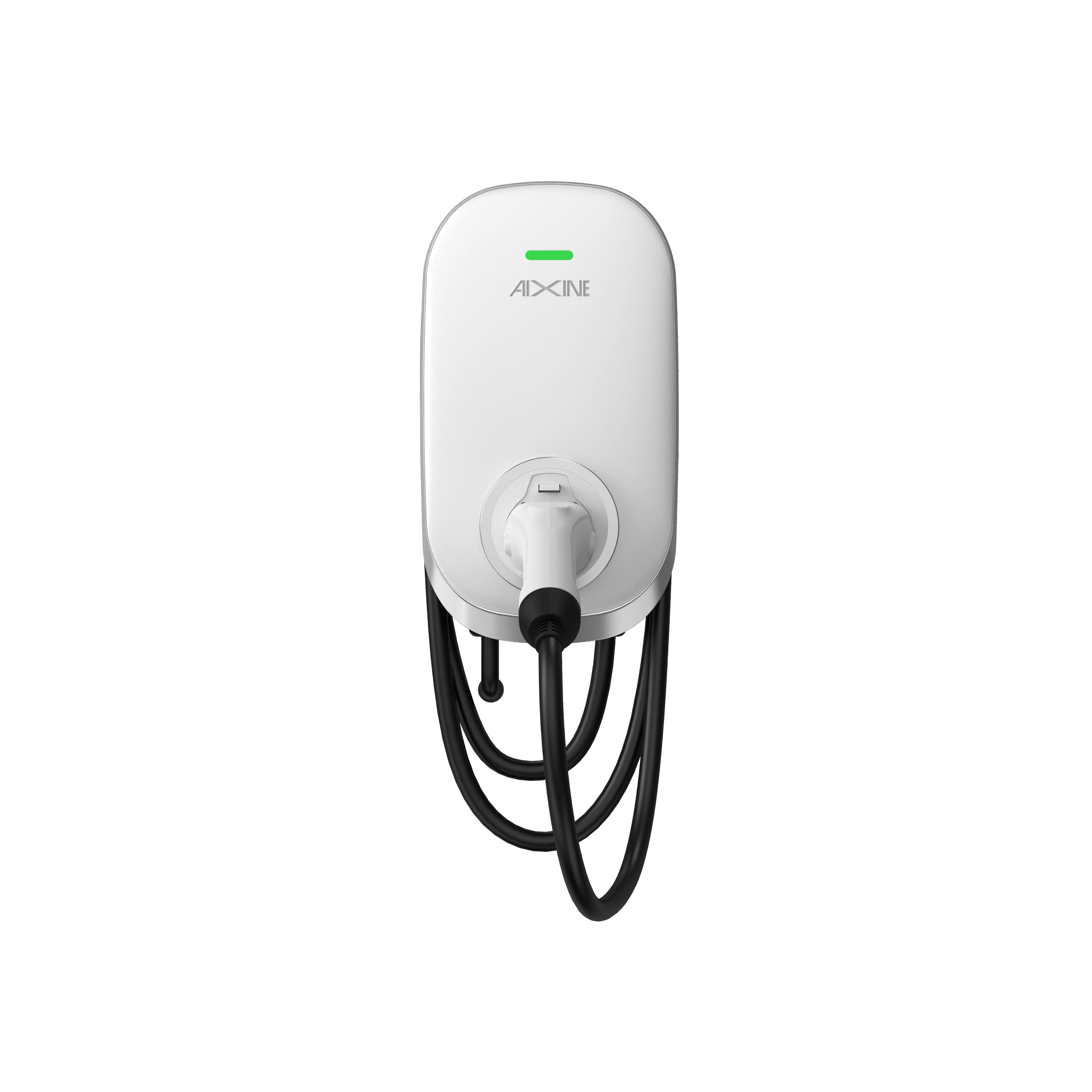

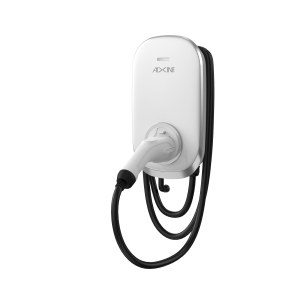

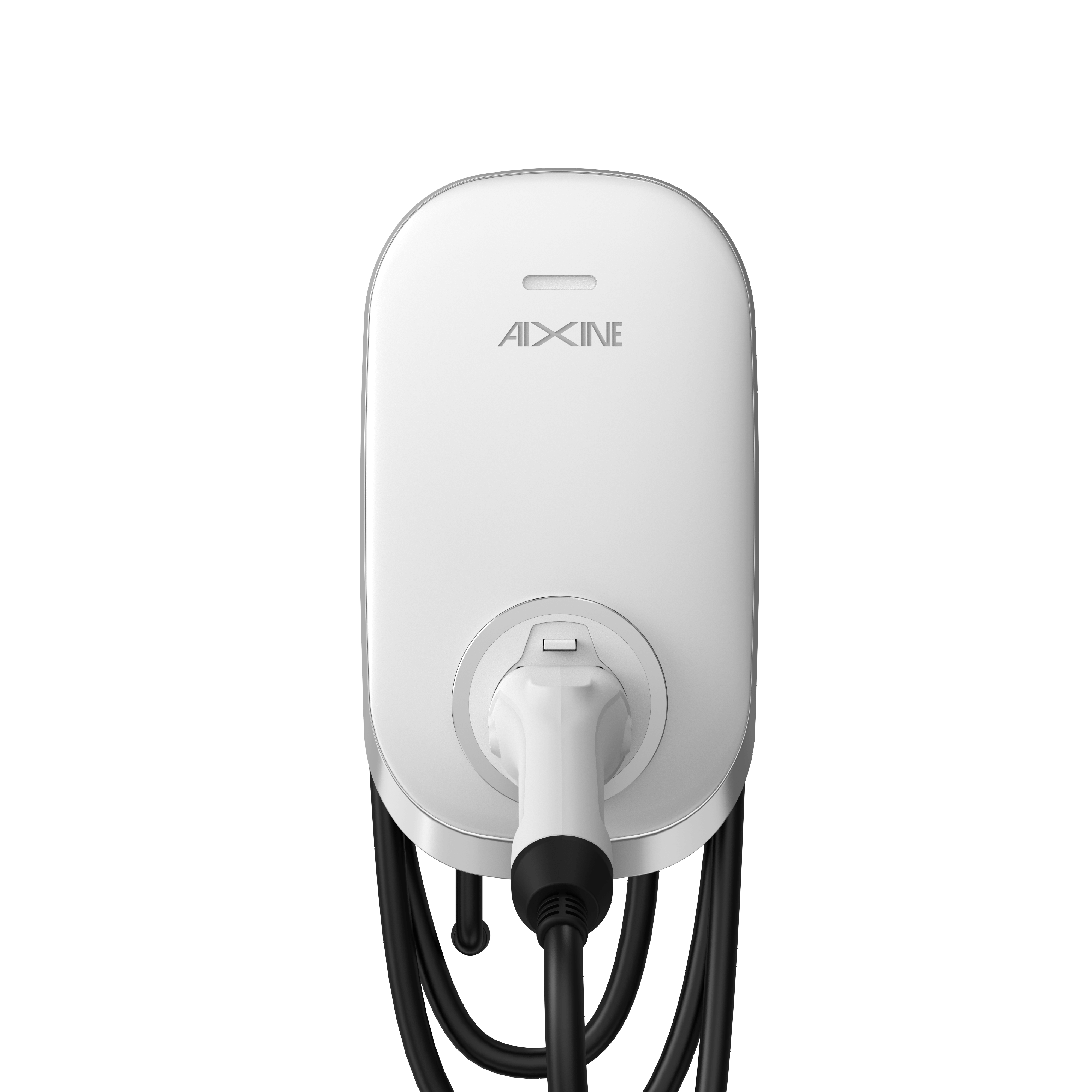

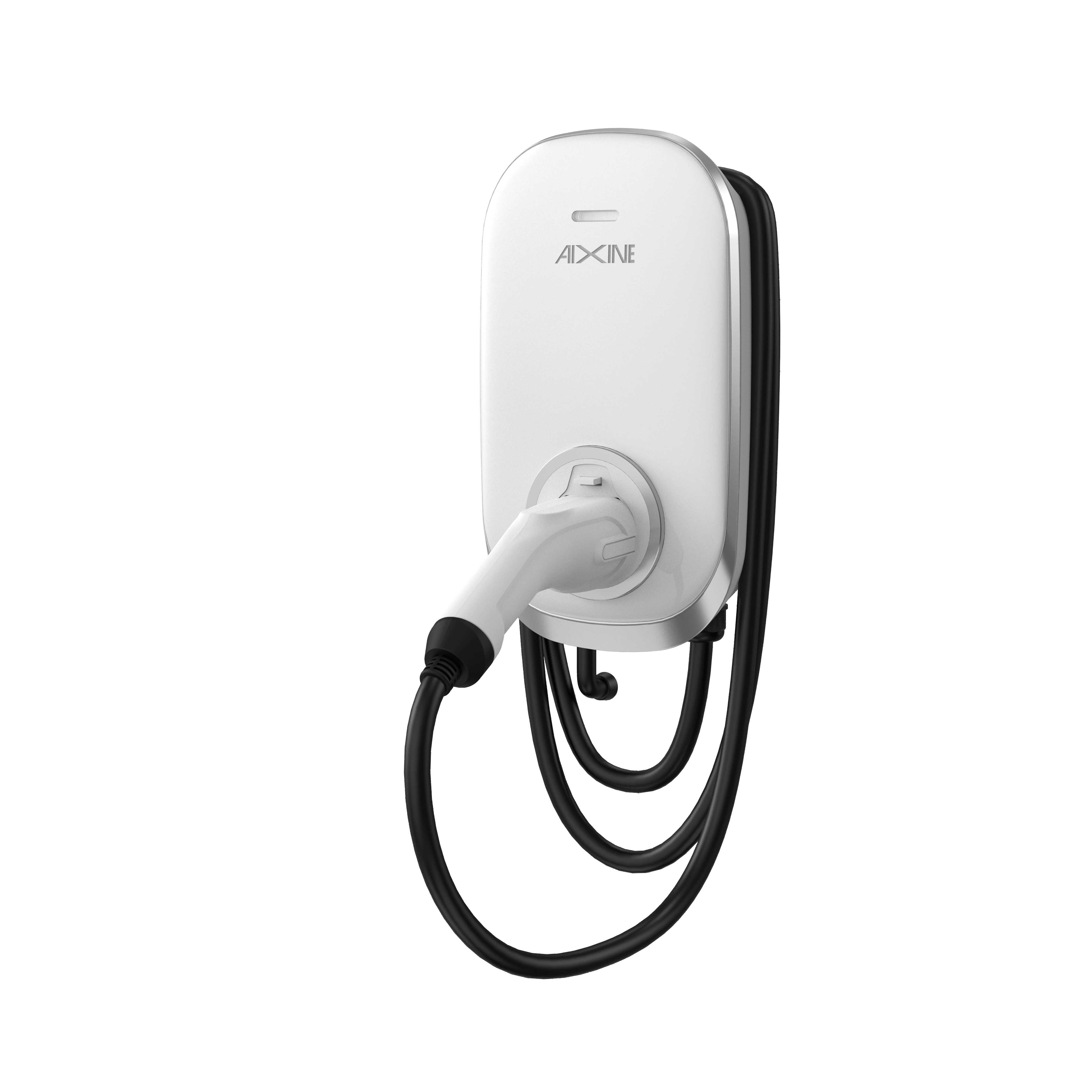

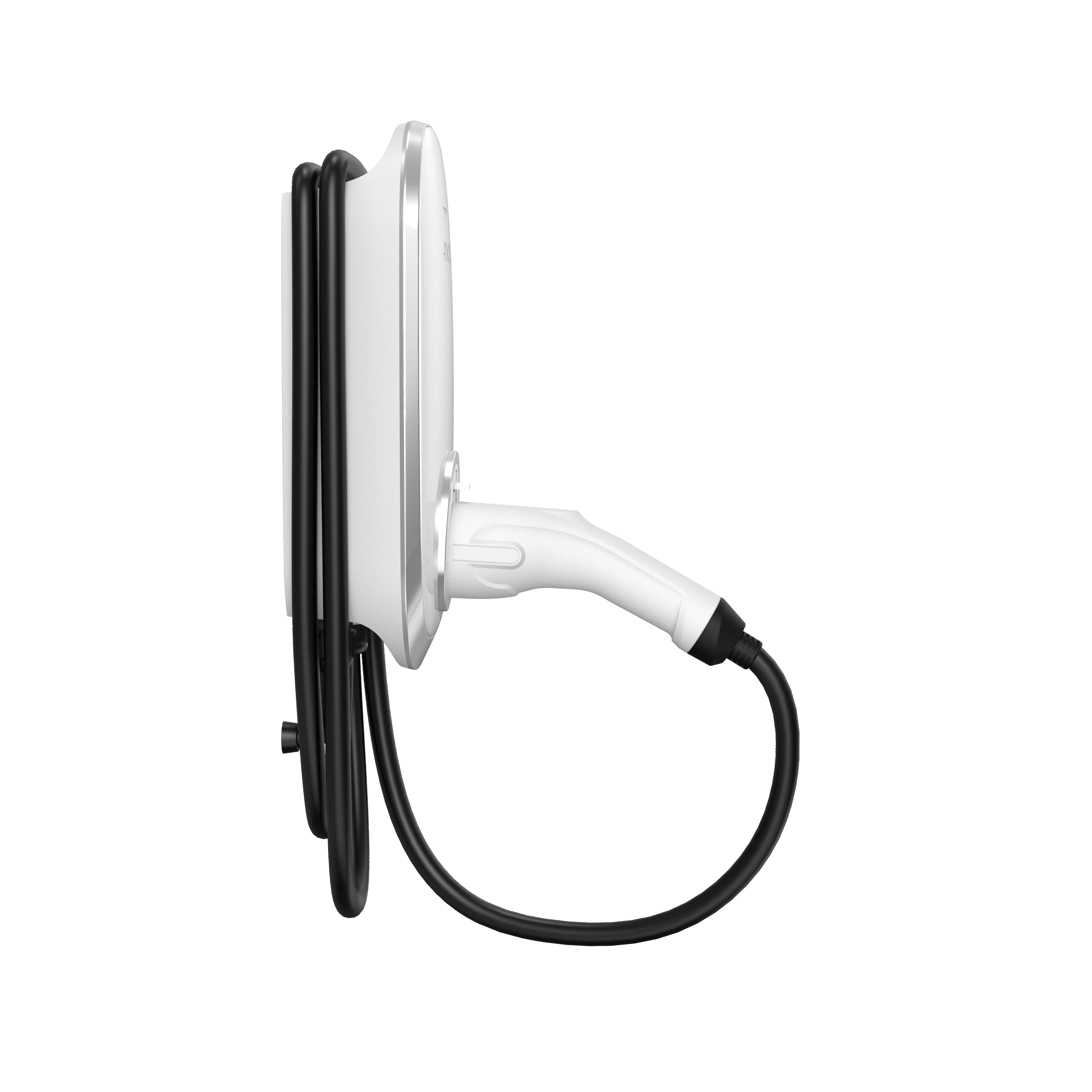

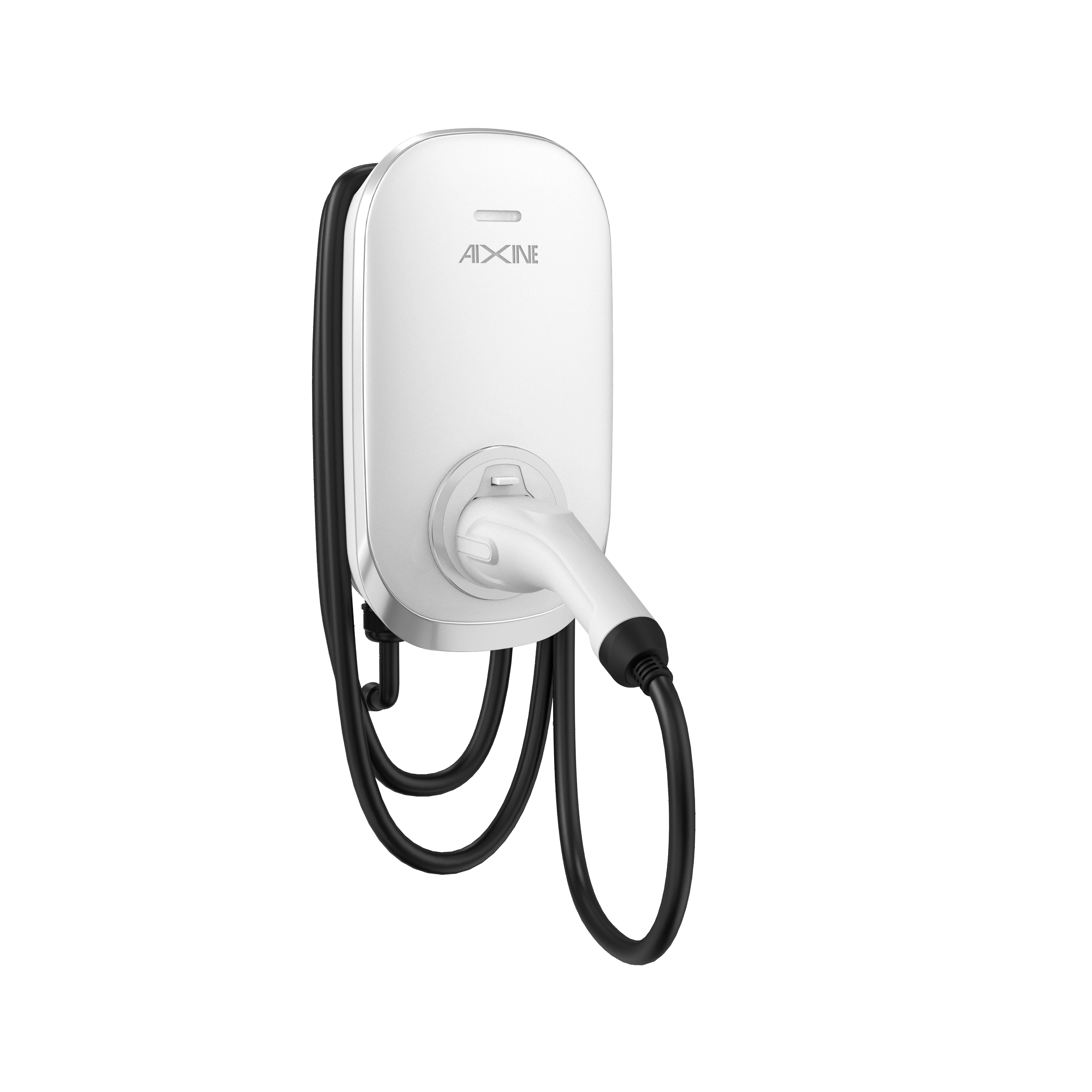

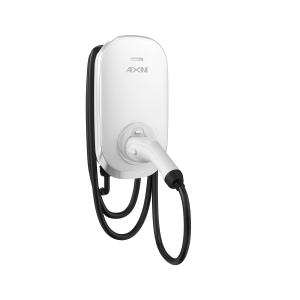

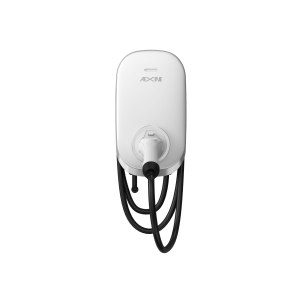

UA Ultra Cherger 36A 16A 32A AX08
36AFrom inc.Made in New Zealand |
36AFrom inc.Made in New Zealand |
36AFrom inc.Made in New Zealand |
36AFrom inc.Made in New Zealand |
---|---|---|---|
Charge up to 680 kilometers in 15 minutes |
Charge up to 680 kilometers in 15 minutes |
Charge up to 680 kilometers in 15 minutes |
Charge up to 680 kilometers in 15 minutes |
Charge up to 680 kilometers in 15 minutes |
Charge up to 680 kilometers in 15 minutes |
Charge up to 680 kilometers in 15 minutes |
Charge up to 680 kilometers in 15 minutes |
Charge up to 680 kilometers in 15 minutes |
Charge up to 680 kilometers in 15 minutes |
Charge up to 680 kilometers in 15 minutes |
Charge up to 680 kilometers in 15 minutes |
Charge up to 680 kilometers in 15 minutes |
Charge up to 680 kilometers in 15 minutes |
Charge up to 680 kilometers in 15 minutes |
Charge up to 680 kilometers in 15 minutes |
Charge up to 680 kilometers in 15 minutes |
Charge up to 680 kilometers in 15 minutes |
Charge up to 680 kilometers in 15 minutes |
Charge up to 680 kilometers in 15 minutes |
36A |
16A |
32A |
|
---|---|---|---|
Charging speed | |||
New Zealand Made | |||
Smart Connectivity | |||
Solar Export Diversion | |||
Carbon Emission Tracking | |||
Home Overload protection | |||
Local Load Management | |||
Colour options | |||
Bio Circular Plastic | 4 (Snow, Sand, Stone, Volcanic) | 4 (Snow, Sand, Stone, Volcanic) | 4 (Snow, Sand, Stone, Volcanic) |
Cable Length/Type | 70% Bio-based enclosure | 70% Bio-based enclosure | 70% Bio-based enclosure |
IP Rating | 4 (Snow, Sand, Stone, Volcanic) | 4 (Snow, Sand, Stone, Volcanic) | 4 (Snow, Sand, Stone, Volcanic) |
Connectivity | 70% Bio-based enclosure | 70% Bio-based enclosure | 70% Bio-based enclosure |
Datasheet | Model | UA-EU-AC07-20-H | UA-EU-AC11-20-H | UA-EU-AC22-20-H |
Input | Power Supply | 1P+N+PE | 3P+N+PE | 3P+N+PE |
Rated Voltage | 230V AC | 400V AC | ||
Rated Current | 32A | 16A | 32A | |
Frequency | 50/60Hz | |||
Output | Output Voltage | 230V AC | 400V AC | |
Maximun Current | 32A | 16A | 32A | |
Output Power | 7KW | 11KW | 22KW | |
User Interface | Charge Connector | Type 2 cable(Type 2 socket optional) | ||
Cable Length | 6m | |||
Housing Material | PC UL-94V0/PC+ABS UL-94V0 | |||
LED Indicator | Green/Yellow/Red | |||
RFID Reader | Miface ISO/IEC 14443 A | |||
Start Mode | Plug&Play/RFID card/App | |||
Communication | WiFi | WiFi(2.4GHz) | ||
4G | yes | |||
Buletooth | yes | |||
Ethernet | yes | |||
CAN | yes | |||
RS485 | yes | |||
ESIM | optional | |||
Optional | OCPP1.6 Json (OCPP2.0 upgraded) | |||
Security and Safety | RCD | 30mA+6mA DC detection | ||
Ingress Protection | IP66 | |||
Impact Protection | IK10 | |||
Electrical Protection | Over current protection,Residual current protection,Surge protection, Over/Under voltage protection,Over/Under frequency protection, Over temperature protection | |||
Certification | CE/TUV | |||
Certification Standard | IEC61851-1:2019 IEC 62955:2018 IEC 61851-21-2:2018 IEC 62196 | |||
Warranty | 2years | |||
Environment | Installation | Wall-mount/Pole-mount(optional) | ||
Work Temperature | ‘-30℃~+50℃ | |||
Work Humidity | 5%-95% | |||
Work Altitude | <2000米 | |||
Package | Product Dimension | 350×196×88mm | ||
Package Dimension | 560*375*255mm | |||
Net Weight | 3.8kg | |||
Gross Weight | 6.8kg | |||
External Package | Carton |
